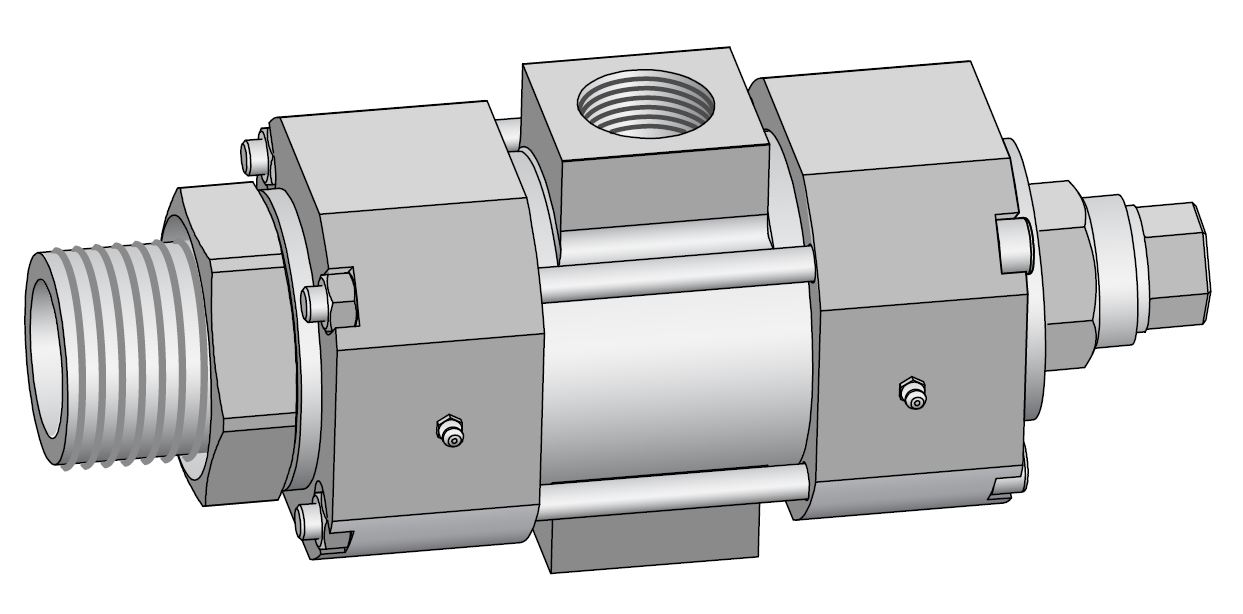

Top mounted: WS200
WS200
A swivel transfers the high-pressure water from the hose to the drill string. Wassara Swivels are designed and dimensioned to be robust and withstand the high pressure during water-powered drilling.

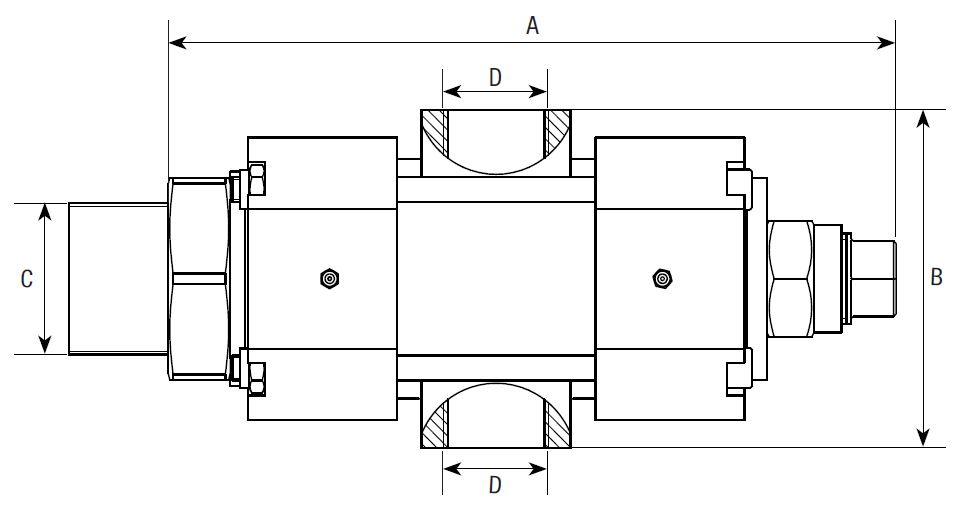

| Length A | 293 mm (11 1/2″) |
| Length B | 134 mm (5″) |
| Thread C | M60x2 LH |
| Hose connection D | ISO 228-G 1 1/4″ |
| For hammers | W200, W280 |
| Pressure, maximum | 220 bar (3190 psi) |
| Flow, maximum | 1200 l/min (317 USgpm) |
| Rotation, maximum | 130 rpm |
| Weight | 15 kg (33 lbs) |
| Detail | Part no. |
|---|---|
| Wassara Swivel WS200 | 1500326 |
| Service kit | 1002610 |

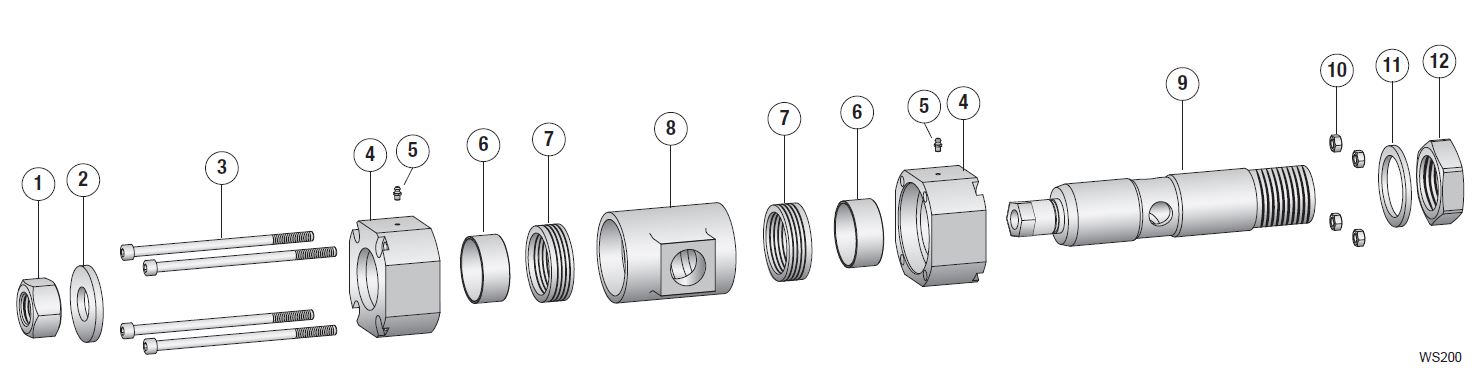

| Pos | Detail |
|---|---|
| 1 | Lock nut M36 |
| 2 | Washer |
| 3 | Screw MC6S 12.9 M10x2 |
| 4 | Lid (x2) |
| 5 | Grease nipple (x2) |
| 6 | Bearing (x2) |
| 7 | Seal (x2), included in Service kit |
| 8 | Housing |
| 9 | Shaft |
| 10 | Lock nut M10 (x4) |
| 11 | Washer |
| 12 | Nut M60x2 LH |
