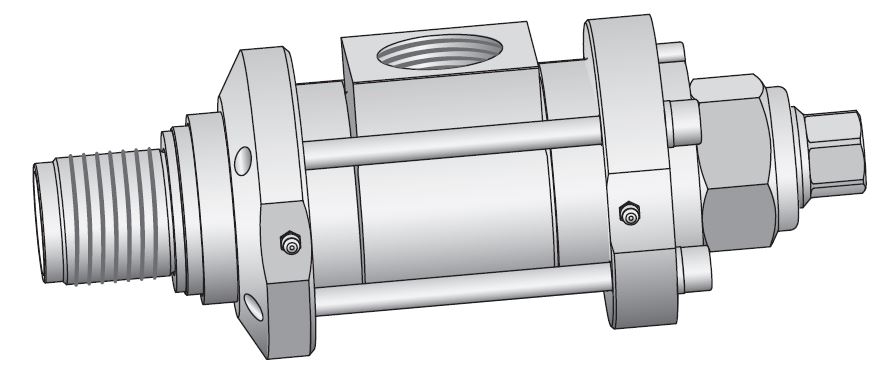

Top mounted: WS150
WS150
A swivel transfers the high-pressure water from the hose to the drill string. Wassara Swivels are designed and dimensioned to be robust and withstand the high pressure during water-powered drilling.

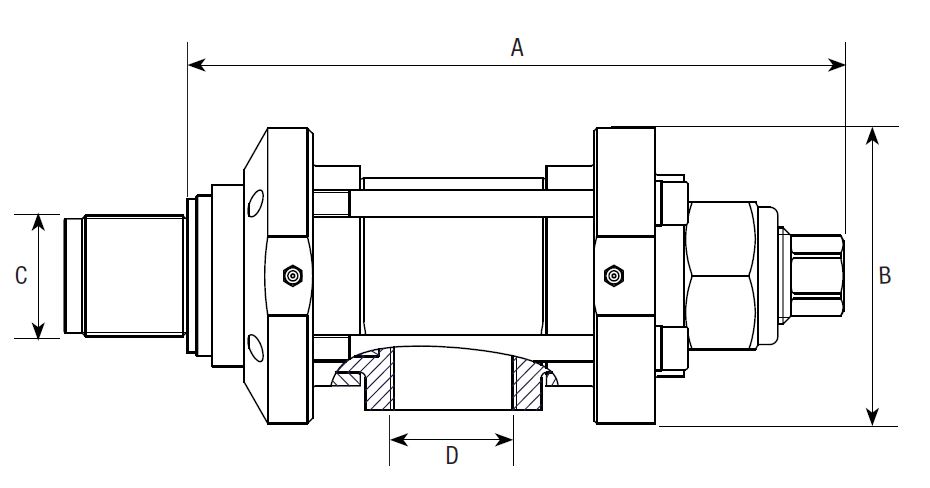

| Length A | 251 mm (10″) |
| Length B | 110 mm (4.3″) |
| Thread C | M45x2 LH |
| Hose connection D | ISO 228-G 1½” |
| For hammers | W50, W70, W80,W100, W120, W150 |
| Pressure, maximum | 250 bar (3625 psi) |
| Flow, maximum | 605 l/min (160 USgpm) |
| Rotation, maximum | 200 rpm |
| Weight | 8 kg (17.6 lbs) |
| Detail | Part no. |
|---|---|
| Wassara Swivel WS150 | 1500072 |
| Service kit | 1003071 |

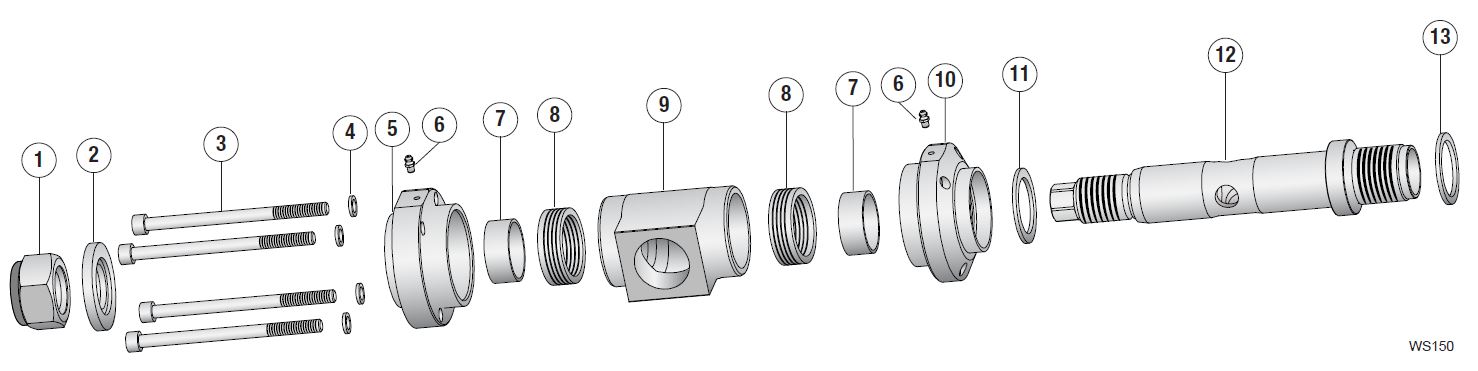

| Pos | Detail |
|---|---|
| 1 | Lock nut M36 |
| 2 | Washer |
| 3 | Screw MC6S 12.9 M10x150 (x4) |
| 4 | Washer NL10 (x4) |
| 5 | Lid |
| 6 | Grease nipple (x2) |
| 7 | Bearing (x2) |
| 8 | Seal (x2), included in Service kit |
| 9 | Housing |
| 10 | Lid |
| 11 | Washer |
| 12 | Shaft |
| 13 | Washer Tredo M45 |
